ERGO-DigiStick PRO W (Ålö/Trima)

ERGO-DigiStick PRO W joystick with built-in power cable (1 m) for electrically controlled valves. ERGO-DigiStick PRO W controls Ålö and Trima front loaders. The joystick contains all the necessary electronics, so there is no need for a separate control box.

ERGO-DigiStick PRO W joystick

ERGO-DigiStick controls the solenoids of the hydraulic valves with PWM, i.e. pulse wide modulation. While the voltage remains the same (12 VDC or 24 VDC).  The current (amps) is adjusted with a pulse width of 100 Hz. The pulse width (length in time) is adjusted between 0 and 100%. This is a common way to adjust the servo pressure  that controls the solenoids on the hydraulic valves. Our joystick contains all the necessary electronics.

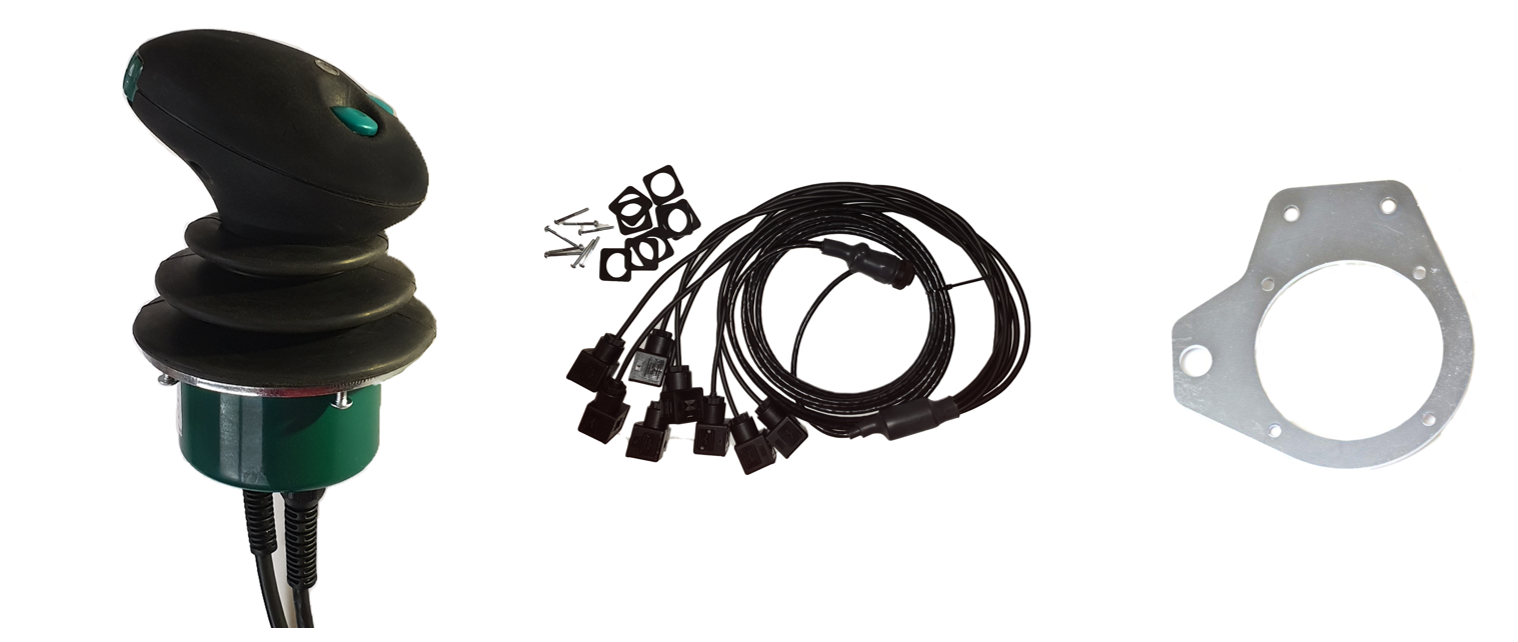

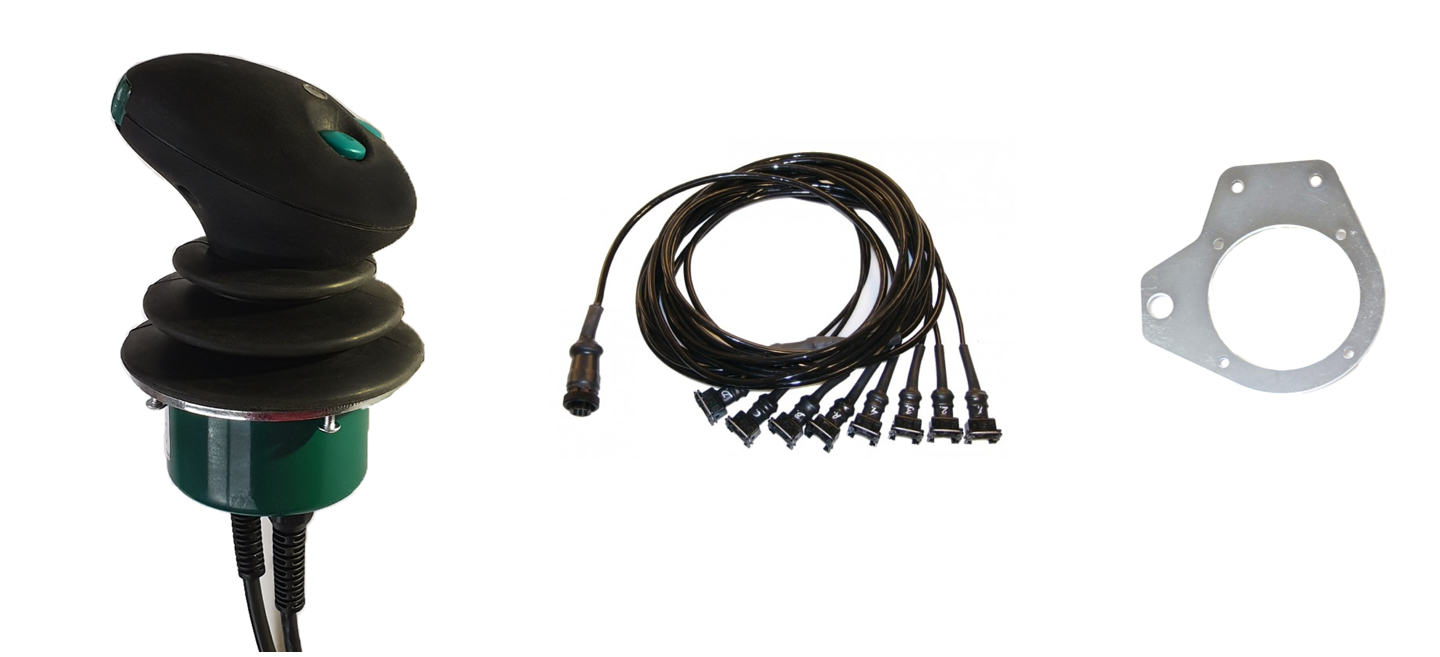

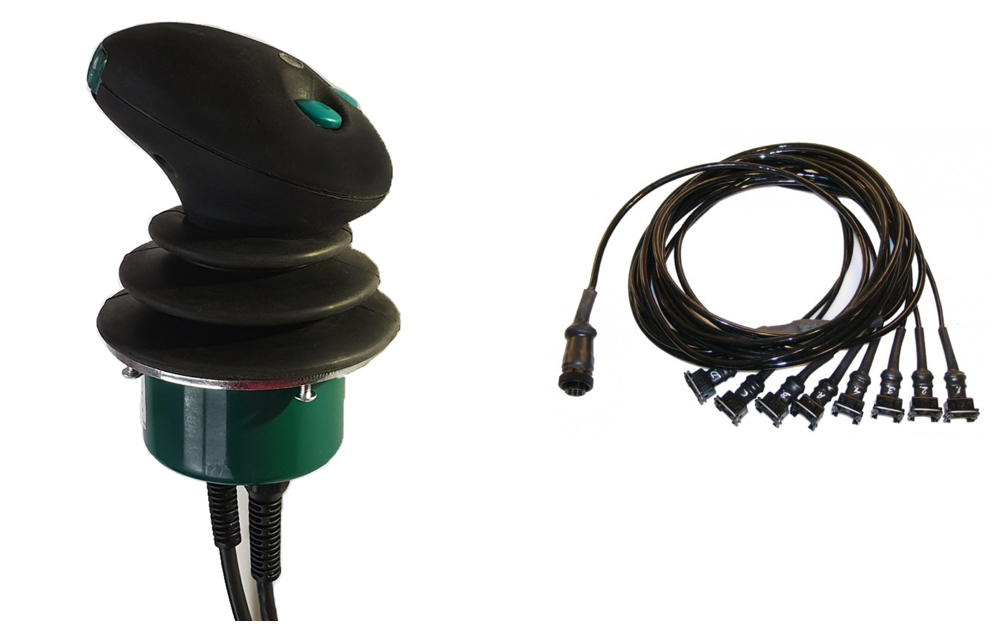

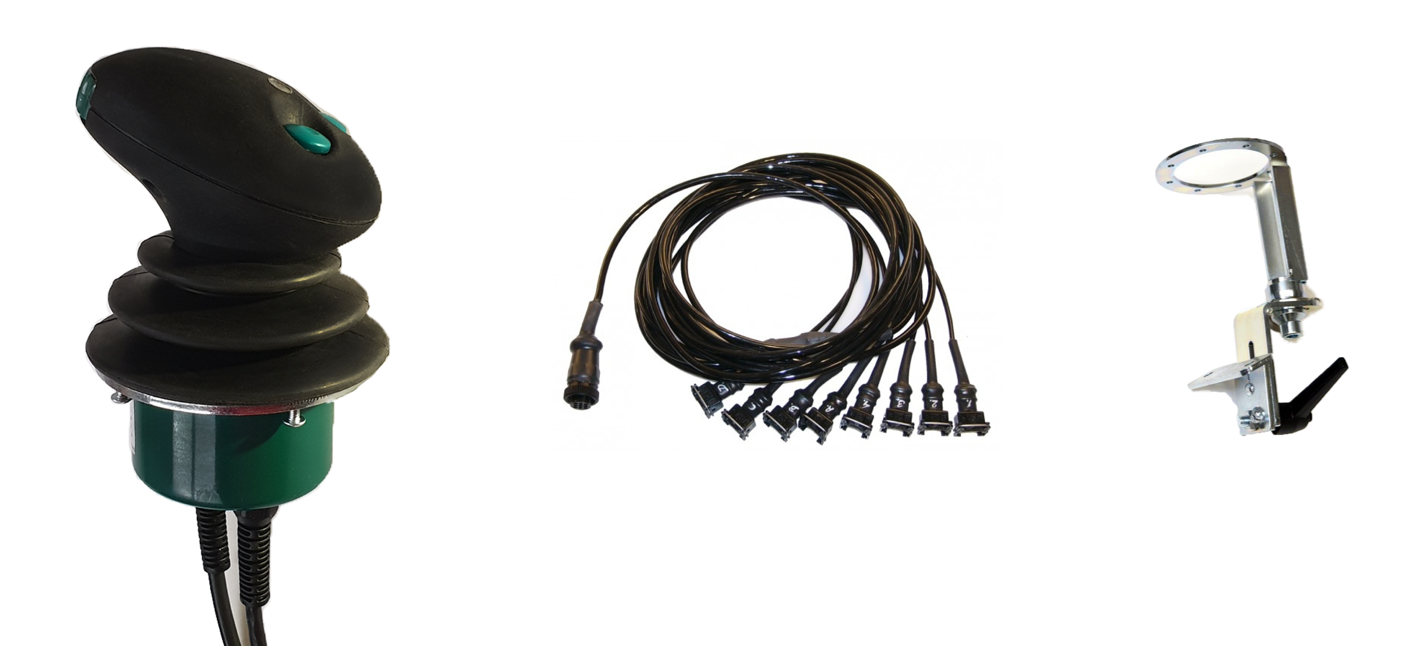

There are two models of the control cable: AMP Junior Power Timer and Hirschmann.
